EPAC: TROPICAL DEPRESSION JIMENA (13E)

[Chacor]

The OECD is scheduled to have a conference in Los Cabos on Tuesday, I doubt that's going ahead now.

[Brent]

Which chaser is going to try and intercept Jimena? Do you have a link?

HurricaneJosh, he chased Dean in the Yucatan so he's devoted. He was also in Texas City for Ike.

[Cyclenall]

Haha, a chaser on Eastern is going right after it

I'm not surprised, there is very little action in the Atlantic other then the less then exceptional Bill so this is a shot.

Well, Jimena appears to have taken on the other cyclone shape as an apposed to the buzz saw which is disappointing because it looked more impressive on first sight. The shape earlier was the same as Hurricane Linda from 1997 (Linda is the next name on the list too for the Epac) and the eye is not small enough to be called a pinhole anymore IMO. The most spectator image was at 13:30 UTC when it looked similar to Hurricane Wilma.

It's also good that recon is finally flying into this thing tomorrow afternoon but as usual the pinhole will probably not be there anymore (a larger eye seems to always be present) for them to find what kind of strength Jimena wielded. The wind speed table shows a 16% of a category 5 hurricane in 24 hours which is the highest I have ever seen it in the Epac since the separate category for CAT5's was added to the chart.

During the past 4 hours, the eye has disappeared but there is a little increase in the -80C cloud tops surrounding the center. A large band is extending to Mexico on the northern side (Like Friday evening). The latest frame does show a small warm spot again.

[Chacor]

WTPZ43 KNHC 310849
TCDEP3
HURRICANE JIMENA DISCUSSION NUMBER 11
NWS TPC/NATIONAL HURRICANE CENTER MIAMI FL EP132009
200 AM PDT MON AUG 31 2009

THE SMALL EYE OF JIMENA HAS BECOME A LITTLE LESS DISTINCT IN
INFRARED SATELLITE IMAGERY. AN EARLIER SSMIS MICROWAVE OVERPASS
ALSO SHOWED A SOMEWHAT LESS DEFINED EYE...BUT WITH A WELL-DEFINED
OUTER BAND. THIS MAY BE A SIGN THAT AN EYE-WALL REPLACEMENT HAS
STARTED...HOWEVER THERE HAVE BEEN NO RECENT MICROWAVE IMAGES TO
CORROBORATE THIS. DUE TO THE RECENT SATELLITE TRENDS...DVORAK
DATA-T NUMBER HAVE DECREASED SLIGHTLY...BUT A BLEND OF THE
OBJECTIVE AND SUBJECTIVE CURRENT INTENSITY ESTIMATES SUGGESTS
MAINTAINING AN INITIAL INTENSITY OF 125 KT.

JIMENA IS MOVING NORTHWESTWARD OR 310/7 KT. A MID-LEVEL RIDGE
OVER MEXICO AND AN UPPER-LEVEL LOW NEAR THE WEST COAST OF THE
CENTRAL BAJA PENINSULA ARE THE FEATURES THAT WILL PLAY A
ROLE IN STEERING THE HURRICANE. THE 0000 UTC MODELS HAVE COME INTO
BETTER AGREEMENT ON THE FUTURE TRACK OF JIMENA. NEARLY ALL OF THE
MODELS KEEP THE UPPER-LOW INTACT LONG ENOUGH TO TURN THE HURRICANE
NORTH-NORTHWESTWARD. THE OUTLIER TO THIS SOLUTION IS THE UKMET
WHICH CONTINUES TO SHOW A WEST-NORTHWESTWARD MOTION. THE CANADIAN
AND ECMWF MODELS HAVE SHIFTED EASTWARD AND ARE NOW IN MUCH BETTER
AGREEMENT WITH THE REMAINDER OF THE GUIDANCE IN PREDICTING A TRACK
NEAR OR OVER THE BAJA PENINSULA IN A COUPLE OF DAYS. THE NEW NHC
TRACK FORECAST IS ESSENTIALLY AN UPDATE TO THE PREVIOUS ADVISORY...
AND IS NEAR THE MULTI-MODEL CONSENSUS.

THE HURRICANE IS EXPECTED TO REMAIN OVER VERY WARM WATER AND IN A
LOW SHEAR ENVIRONMENT DURING THE NEXT 24 HOURS. THE OFFICIAL
FORECAST SHOWS LITTLE CHANGE IN STRENGTH DURING THAT TIME...HOWEVER
FLUCTUATIONS COULD OCCUR AS THE RESULT OF AN EYEWALL REPLACEMENT.
IN ABOUT 48 HOURS...WESTERLY SHEAR IS FORECAST TO INCREASE. THAT
COMBINED WITH POSSIBLE LAND INTERACTION SHOULD BEGIN TO WEAKEN
THE HURRICANE. THE OFFICIAL INTENSITY FORECAST IS A BLEND OF THE
AVAILABLE GUIDANCE AND INDICATES THAT JIMENA COULD REMAIN A VERY
DANGEROUS HURRICANE AS IT MOVES NEAR THE SOUTHERN BAJA PENINSULA.

BASED ON THE CURRENT FORECAST...A HURRICANE WARNING MAY BE REQUIRED
LATER THIS MORNING FOR A PORTION OF THE SOUTHERN BAJA PENINSULA.
INTERESTS ELSEWHERE IN CENTRAL AND SOUTHERN BAJA CALIFORNIA AND THE
WESTERN PORTION OF MAINLAND MEXICO SHOULD CONTINUE TO MONITOR THE
PROGRESS OF JIMENA. ADDITIONAL WATCHES OR WARNINGS MAY BE REQUIRED
FOR PORTIONS OF THESE AREAS LATER TODAY.

A U.S. AIR FORCE RESERVE HURRICANE HUNTER AIRCRAFT IS SCHEDULED TO
INVESTIGATE JIMENA AROUND 1800 UTC TODAY. DATA FROM THE AIRCRAFT
SHOULD PROVIDE A BETTER ASSESSMENT OF THE INTENSITY AND SIZE OF THE
HURRICANE.

FORECAST POSITIONS AND MAX WINDS

INITIAL 31/0900Z 17.5N 107.9W 125 KT
12HR VT 31/1800Z 18.5N 108.7W 125 KT
24HR VT 01/0600Z 20.1N 109.8W 125 KT
36HR VT 01/1800Z 22.1N 110.8W 115 KT
48HR VT 02/0600Z 24.1N 111.5W 100 KT
72HR VT 03/0600Z 27.2N 112.7W 50 KT...INLAND
96HR VT 04/0600Z 28.5N 113.3W 30 KT...INLAND
120HR VT 05/0600Z 29.5N 114.0W 25 KT...REMNANT LOW

$$
FORECASTER BROWN

[HURAKAN]

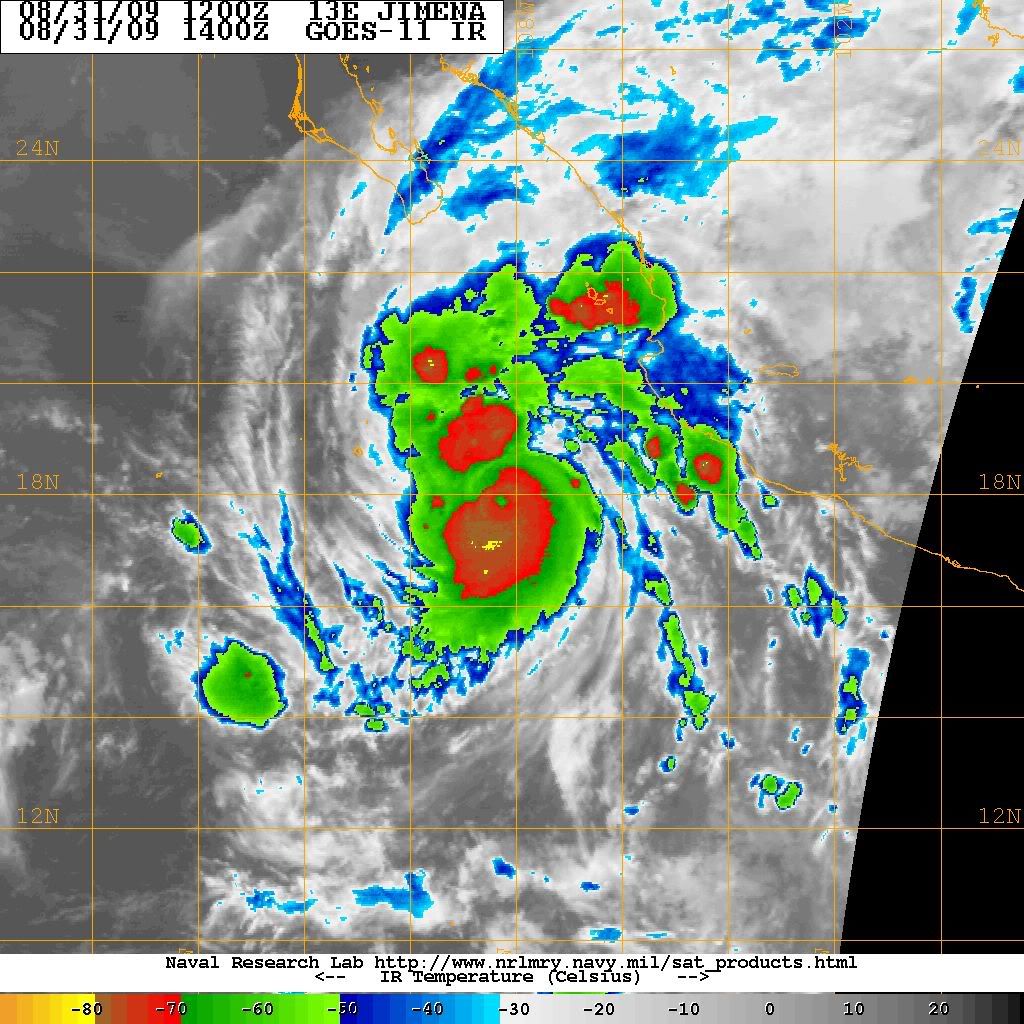

The eye looks bigger now

[HURAKAN]

285
WTPZ33 KNHC 311136
TCPEP3
BULLETIN
HURRICANE JIMENA INTERMEDIATE ADVISORY NUMBER 11A
NWS TPC/NATIONAL HURRICANE CENTER MIAMI FL EP132009
500 AM PDT MON AUG 31 2009

...POWERFUL HURRICANE JIMENA CONTINUES NORTHWESTWARD...

A HURRICANE WATCH IS IN EFFECT FOR THE SOUTHERN PORTION OF THE BAJA
CALIFORNIA PENINSULA FROM BAHIA MAGDALENA SOUTHWARD ON THE WEST
COAST...AND FROM SAN EVARISTO SOUTHWARD ON THE EAST COAST...
INCLUDING CABO SAN LUCAS. A HURRICANE WATCH MEANS THAT HURRICANE
CONDITIONS ARE POSSIBLE WITHIN THE WATCH AREA...GENERALLY WITHIN 36
HOURS. A HURRICANE WARNING MAY BE REQUIRED FOR THIS AREA LATER
TODAY.

INTERESTS ELSEWHERE IN THE SOUTHERN AND CENTRAL BAJA CALIFORNIA
PENINSULA AND IN WESTERN MAINLAND MEXICO SHOULD MONITOR THE
PROGRESS OF JIMENA. ADDITIONAL WATCHES MAY BE REQUIRED FOR
PORTIONS OF THESE AREAS LATER THIS MORNING.

FOR STORM INFORMATION SPECIFIC TO YOUR AREA OUTSIDE OF THE UNITED
STATES...PLEASE MONITOR PRODUCTS ISSUED BY YOUR NATIONAL
METEOROLOGICAL SERVICE.

AT 500 AM PDT...1200 UTC...THE CENTER OF HURRICANE JIMENA WAS
LOCATED NEAR LATITUDE 17.8 NORTH...LONGITUDE 108.1 WEST OR ABOUT 370
MILES...595 KM...SOUTH-SOUTHEAST OF CABO SAN LUCAS MEXICO.

JIMENA IS MOVING TOWARD THE NORTHWEST NEAR 8 MPH...13 KM/HR. A
GRADUAL INCREASE IN FORWARD SPEED AND A TURN TOWARD THE
NORTH-NORTHWEST IS EXPECTED DURING THE NEXT DAY OR SO. ON THE
FORECAST TRACK...JIMENA WILL BE APPROACHING THE SOUTHERN PORTION OF
THE BAJA CALIFORNIA PENINSULA ON TUESDAY.

MAXIMUM SUSTAINED WINDS ARE NEAR 145 MPH...230 KM/HR...WITH HIGHER
GUSTS. JIMENA IS AN EXTREMELY DANGEROUS CATEGORY FOUR HURRICANE ON
THE SAFFIR-SIMPSON SCALE. SOME FLUCTUATIONS IN INTENSITY ARE
POSSIBLE DURING THE NEXT DAY OR TWO. AN AIR FORCE RESERVE
HURRICANE HUNTER AIRCRAFT IS SCHEDULED TO INVESTIGATE JIMENA LATER
TODAY.

HURRICANE FORCE WINDS EXTEND OUTWARD UP TO 30 MILES...45 KM...FROM
THE CENTER...AND TROPICAL STORM FORCE WINDS EXTEND OUTWARD UP TO 80
MILES...130 KM.

ESTIMATED MINIMUM CENTRAL PRESSURE IS 940 MB...27.76 INCHES.

...SUMMARY OF 500 AM PDT INFORMATION...
LOCATION...17.8N 108.1W
MAXIMUM SUSTAINED WINDS...145 MPH
PRESENT MOVEMENT...NORTHWEST OR 310 DEGREES AT 8 MPH
MINIMUM CENTRAL PRESSURE...940 MB

THE NEXT ADVISORY WILL BE ISSUED BY THE NATIONAL HURRICANE CENTER AT
800 AM PDT.

$$
FORECASTER PASCH

[cycloneye]

The plane leaves Biloxi in about an hour from the time of this post,It will be a loooong flight so whoever posts the obs,get ready for the long journey.

[cycloneye]

Air Force Plane is on route to Jimena.I have to go so who wants to post the obs?

URNT15 KNHC 311302
AF307 0113E JIMENA HDOB 06 20090831
125300 2940N 09137W 3601 08360 0441 -225 -304 274038 039 999 999 03
125330 2940N 09139W 3601 08360 0440 -225 -295 275038 038 999 999 03
125400 2939N 09142W 3601 08359 0440 -225 -298 275037 038 999 999 03
125430 2939N 09144W 3601 08359 0440 -225 -304 272037 038 999 999 03
125500 2939N 09147W 3600 08360 0439 -225 -300 270037 037 999 999 03
125530 2938N 09149W 3602 08357 0440 -225 -303 270037 038 999 999 03
125600 2938N 09152W 3601 08360 0440 -225 -303 270038 038 999 999 03
125630 2937N 09154W 3601 08360 0441 -224 -304 271038 038 999 999 03
125700 2937N 09156W 3602 08357 0439 -223 -307 272038 039 999 999 03
125730 2936N 09159W 3600 08360 0439 -225 -310 272037 038 999 999 03
125800 2936N 09201W 3602 08355 0440 -222 -309 276039 040 999 999 03
125830 2935N 09204W 3601 08358 0441 -220 -313 276039 040 999 999 03
125900 2935N 09206W 3599 08361 0440 -220 -318 277039 039 999 999 03
125930 2934N 09209W 3601 08360 0441 -220 -319 280037 037 999 999 03
130000 2933N 09211W 3601 08361 0443 -220 -321 279037 038 999 999 03
130030 2932N 09213W 3602 08358 0442 -221 -324 277041 041 999 999 03
130100 2932N 09216W 3599 08366 0443 -221 -323 278039 040 999 999 03
130130 2931N 09218W 3602 08359 0443 -221 -323 275038 039 999 999 03
130200 2930N 09221W 3601 08361 0442 -221 -325 276038 038 999 999 03
130230 2930N 09223W 3601 08361 0442 -222 -324 276038 039 999 999 03

[yzerfan]

Given the situation in southern California right now, I think a lot of emergency planners would love to take their mudslide chances with rain from this one right now if it knocked down or helped contain the wildfires.

[cycloneye]

artist,you want to post the obs? I have to go.

URNT15 KNHC 311312
AF307 0113E JIMENA HDOB 07 20090831
130300 2929N 09226W 3601 08361 0442 -225 -324 276038 038 999 999 03
130330 2928N 09228W 3602 08360 0442 -225 -324 277038 038 999 999 03
130400 2928N 09230W 3601 08361 0443 -225 -323 278038 038 999 999 03
130430 2927N 09233W 3601 08361 0443 -225 -323 280039 040 999 999 03
130500 2927N 09235W 3600 08363 0442 -225 -323 280036 037 999 999 03
130530 2926N 09238W 3601 08361 0443 -225 -321 282037 037 999 999 03
130600 2926N 09240W 3601 08363 0443 -225 -319 279036 036 999 999 03
130630 2925N 09243W 3601 08362 0444 -225 -314 270036 037 999 999 03
130700 2925N 09245W 3601 08364 0444 -222 -307 270037 037 999 999 03
130730 2925N 09248W 3601 08361 0443 -223 -303 273037 038 999 999 03
130800 2925N 09250W 3601 08362 0444 -220 -303 277036 036 999 999 03
130830 2924N 09253W 3598 08361 0441 -222 -307 275037 038 999 999 03
130900 2923N 09255W 3602 08355 0439 -223 -309 276037 037 999 999 03
130930 2923N 09258W 3601 08356 0438 -222 -309 279037 037 999 999 03
131000 2922N 09300W 3599 08356 0437 -223 -314 278036 037 999 999 03
131030 2922N 09303W 3601 08358 0438 -225 -319 276036 036 999 999 03
131100 2922N 09305W 3601 08358 0439 -225 -318 276036 036 999 999 03
131130 2921N 09308W 3601 08359 0439 -222 -318 280036 036 999 999 03
131200 2921N 09310W 3601 08356 0439 -220 -323 283036 036 999 999 03
131230 2920N 09313W 3601 08356 0438 -220 -330 282035 036 999 999 03
$$

[x-y-no]

URNT15 KNHC 311322
AF307 0113E JIMENA HDOB 08 20090831
131300 2920N 09315W 3599 08360 0438 -220 -332 282035 035 999 999 03
131330 2919N 09318W 3601 08356 0439 -225 -332 279034 034 999 999 03
131400 2919N 09320W 3600 08362 0439 -226 -332 276033 034 999 999 03
131430 2919N 09323W 3598 08361 0440 -224 -328 277034 035 999 999 03
131500 2918N 09325W 3601 08359 0439 -226 -321 278033 034 999 999 03
131530 2918N 09328W 3601 08356 0439 -225 -315 279035 035 999 999 03
131600 2917N 09330W 3601 08358 0439 -225 -310 281035 035 999 999 03
131630 2917N 09333W 3601 08356 0439 -224 -309 281033 034 999 999 03
131700 2916N 09335W 3601 08358 0438 -224 -310 281034 034 999 999 03
131730 2916N 09338W 3601 08359 0439 -221 -311 281033 034 999 999 03
131800 2915N 09340W 3600 08359 0438 -220 -313 281032 032 999 999 03
131830 2915N 09343W 3601 08358 0439 -221 -316 280032 032 999 999 03
131900 2915N 09345W 3602 08355 0438 -221 -317 280032 033 999 999 03
131930 2914N 09348W 3601 08356 0439 -222 -319 281031 032 999 999 03
132000 2914N 09350W 3602 08355 0438 -223 -321 279032 032 999 999 03
132030 2913N 09353W 3601 08358 0438 -225 -322 280032 032 999 999 03
132100 2913N 09355W 3600 08357 0438 -225 -324 279032 033 999 999 03
132130 2912N 09358W 3602 08354 0438 -225 -323 281031 032 999 999 03
132200 2912N 09401W 3601 08356 0437 -228 -321 284031 032 999 999 03
132230 2911N 09403W 3601 08355 0437 -225 -315 290033 034 999 999 03
$$
;

[x-y-no]

URNT15 KNHC 311332
AF307 0113E JIMENA HDOB 09 20090831
132300 2911N 09406W 3601 08356 0438 -225 -309 288033 034 999 999 03
132330 2911N 09408W 3600 08359 0439 -225 -305 286033 034 999 999 03
132400 2910N 09411W 3601 08357 0438 -227 -303 289032 033 999 999 03
132430 2910N 09413W 3601 08357 0438 -230 -302 289032 033 999 999 03
132500 2909N 09416W 3602 08355 0438 -230 -298 288032 034 999 999 03
132530 2909N 09418W 3601 08360 0439 -231 -294 289031 033 999 999 03
132600 2908N 09421W 3601 08361 0441 -227 -292 289035 037 999 999 03
132630 2908N 09423W 3599 08361 0440 -225 -286 289037 037 999 999 03
132700 2907N 09426W 3601 08357 0440 -226 -286 294037 038 999 999 03
132730 2907N 09428W 3599 08361 0440 -225 -289 293036 037 999 999 03
132800 2906N 09431W 3601 08357 0440 -225 -288 289036 036 999 999 03
132830 2906N 09433W 3601 08360 0442 -225 -289 288037 038 999 999 03
132900 2905N 09436W 3601 08360 0441 -225 -290 291037 037 999 999 03
132930 2905N 09438W 3601 08360 0441 -223 -294 292036 037 999 999 03
133000 2905N 09441W 3602 08357 0441 -224 -298 291035 036 999 999 03
133030 2904N 09443W 3601 08360 0442 -225 -298 291035 036 999 999 03
133100 2904N 09446W 3600 08363 0442 -225 -299 293035 035 999 999 03
133130 2903N 09449W 3601 08360 0443 -225 -300 293035 035 999 999 03
133200 2903N 09451W 3602 08361 0443 -225 -302 293035 035 999 999 03
133230 2902N 09454W 3599 08366 0443 -225 -302 294034 035 999 999 03
$$
;

[btangy]

8/31/09 00Z 4 member grand global ensemble. Still quite a large spread. Appears to still be a left of track bias in the short term from most of the members, so would weight the right side of the cone higher in line with the deterministic model consensus.

[x-y-no]

URNT15 KNHC 311342
AF307 0113E JIMENA HDOB 10 20090831
133300 2902N 09456W 3601 08360 0442 -228 -299 295031 032 999 999 03
133330 2901N 09459W 3601 08361 0442 -230 -300 293031 032 999 999 03
133400 2901N 09501W 3601 08359 0442 -224 -294 287031 031 999 999 03
133430 2900N 09504W 3601 08359 0442 -223 -290 283030 031 999 999 03
133500 2900N 09506W 3600 08362 0443 -223 -291 281032 032 999 999 03
133530 2859N 09509W 3600 08363 0442 -226 -288 288031 032 999 999 03
133600 2859N 09511W 3602 08360 0443 -225 -284 282032 033 999 999 03
133630 2858N 09514W 3600 08365 0442 -225 -283 275029 030 999 999 03
133700 2858N 09516W 3601 08361 0443 -225 -277 274028 028 999 999 03
133730 2857N 09519W 3601 08361 0442 -225 -272 274028 029 999 999 03
133800 2857N 09521W 3601 08360 0442 -226 -271 275027 028 999 999 03
133830 2856N 09524W 3600 08362 0442 -228 -269 279028 029 999 999 03
133900 2856N 09527W 3600 08362 0442 -230 -270 281029 029 999 999 03
133930 2855N 09529W 3601 08362 0443 -230 -268 273028 029 999 999 03
134000 2855N 09532W 3599 08366 0444 -234 -268 283027 031 999 999 03
134030 2855N 09534W 3601 08362 0444 -235 -270 288027 028 999 999 03
134100 2854N 09537W 3602 08360 0444 -232 -273 275025 025 999 999 03
134130 2854N 09539W 3600 08365 0443 -229 -271 259022 023 999 999 03
134200 2853N 09542W 3601 08362 0444 -225 -268 257022 024 999 999 03
134230 2853N 09545W 3602 08361 0444 -228 -263 258021 022 999 999 03
$$
;

[x-y-no]

URNT15 KNHC 311352
AF307 0113E JIMENA HDOB 11 20090831
134300 2852N 09547W 3601 08362 0443 -230 -256 249019 020 999 999 03
134330 2852N 09550W 3601 08362 0444 -230 -254 251020 021 999 999 03
134400 2851N 09552W 3600 08365 0443 -230 -250 253019 019 999 999 03
134430 2850N 09555W 3601 08362 0442 -230 -250 252020 021 999 999 03
134500 2849N 09557W 3597 08367 0443 -230 -248 252021 022 999 999 03
134530 2847N 09558W 3604 08357 0443 -230 -244 261021 022 999 999 03
134600 2845N 09559W 3601 08364 0445 -227 -244 258023 024 999 999 03
134630 2843N 09600W 3601 08363 0445 -225 -247 260022 023 999 999 03
134700 2841N 09602W 3599 08366 0445 -225 -246 263023 024 999 999 03
134730 2839N 09603W 3601 08364 0445 -225 -248 269023 024 999 999 03
134800 2837N 09604W 3601 08366 0446 -225 -249 274024 024 999 999 03
134830 2835N 09605W 3599 08368 0447 -225 -247 274023 023 999 999 03
134900 2833N 09606W 3598 08373 0448 -224 -245 274022 022 999 999 03
134930 2831N 09607W 3599 08370 0448 -220 -242 276022 022 999 999 03
135000 2829N 09608W 3599 08370 0449 -220 -237 278021 022 999 999 03
135030 2827N 09609W 3599 08372 0450 -220 -233 273020 020 999 999 03
135100 2825N 09609W 3598 08374 0450 -220 -228 271020 020 999 999 03
135130 2823N 09610W 3601 08369 0451 -220 -222 273019 019 999 999 03
135200 2821N 09611W 3599 08375 0452 -220 -220 276019 021 999 999 03
135230 2820N 09612W 3597 08379 0453 -219 -219 275019 020 999 999 03
$$
;

[x-y-no]

URNT15 KNHC 311402
AF307 0113E JIMENA HDOB 12 20090831
135300 2818N 09613W 3598 08378 0454 -217 -217 273018 018 999 999 03
135330 2816N 09614W 3599 08378 0455 -215 -215 275019 020 999 999 03
135400 2814N 09615W 3594 08386 0453 -216 -216 272022 023 999 999 03
135430 2812N 09616W 3595 08382 0452 -215 -215 270025 025 999 999 03
135500 2810N 09617W 3598 08375 0451 -215 -215 270024 025 999 999 03
135530 2808N 09618W 3599 08373 0450 -216 -216 270024 025 999 999 03
135600 2806N 09619W 3598 08375 0450 -220 -220 267026 026 999 999 03
135630 2804N 09620W 3599 08373 0451 -219 -219 266027 028 999 999 03
135700 2802N 09621W 3602 08368 0450 -215 -217 269028 029 999 999 03
135730 2759N 09622W 3601 08369 0450 -216 -226 269027 027 999 999 03
135800 2757N 09623W 3601 08368 0450 -219 -235 266025 026 999 999 03
135830 2755N 09624W 3601 08370 0450 -220 -242 267024 025 999 999 03
135900 2753N 09626W 3601 08370 0452 -217 -247 267026 027 999 999 03
135930 2751N 09627W 3601 08371 0453 -215 -252 265024 025 999 999 03
140000 2748N 09628W 3601 08372 0453 -215 -256 260021 022 999 999 03
140030 2746N 09629W 3601 08371 0454 -215 -259 253021 021 999 999 03
140100 2744N 09630W 3601 08374 0454 -218 -260 244018 019 999 999 03
140130 2742N 09631W 3601 08374 0454 -220 -261 235018 018 999 999 03
140200 2740N 09632W 3601 08371 0452 -220 -261 233018 018 999 999 03
140230 2737N 09633W 3601 08370 0452 -220 -260 235018 018 999 999 03
$$
;

[x-y-no]

URNT15 KNHC 311412
AF307 0113E JIMENA HDOB 13 20090831
140300 2735N 09634W 3601 08372 0453 -220 -260 238017 017 999 999 03
140330 2733N 09635W 3601 08371 0453 -215 -259 243017 017 999 999 03
140400 2731N 09636W 3601 08371 0453 -215 -260 243016 017 999 999 03
140430 2729N 09637W 3601 08373 0453 -215 -259 245016 016 999 999 03
140500 2726N 09639W 3601 08373 0454 -215 -259 249016 017 999 999 03
140530 2724N 09640W 3601 08372 0454 -215 -259 249018 018 999 999 03
140600 2722N 09641W 3601 08375 0455 -215 -257 246020 020 999 999 03
140630 2720N 09642W 3601 08376 0456 -215 -256 246020 020 999 999 03
140700 2718N 09643W 3601 08376 0457 -213 -256 247021 021 999 999 03
140730 2715N 09644W 3601 08377 0457 -210 -255 255021 021 999 999 03
140800 2713N 09645W 3601 08376 0458 -211 -255 254021 021 999 999 03
140830 2711N 09646W 3601 08378 0458 -210 -254 256021 021 999 999 03
140900 2709N 09647W 3601 08377 0459 -210 -254 257022 023 999 999 03
140930 2707N 09648W 3601 08377 0459 -210 -254 257024 024 999 999 03
141000 2704N 09649W 3601 08377 0459 -210 -254 254024 025 999 999 03
141030 2702N 09650W 3601 08377 0458 -210 -253 254023 024 999 999 03
141100 2700N 09651W 3601 08377 0458 -215 -253 255022 023 000 004 00
141130 2658N 09653W 3601 08377 0459 -215 -251 256022 022 003 003 00
141200 2656N 09654W 3601 08377 0459 -215 -249 256022 022 008 003 00
141230 2653N 09655W 3601 08378 0459 -215 -250 254021 022 006 003 00
$$
;

[x-y-no]

URNT15 KNHC 311422
AF307 0113E JIMENA HDOB 14 20090831
141300 2651N 09656W 3601 08379 0460 -215 -248 254021 021 007 003 00
141330 2649N 09657W 3601 08379 0461 -215 -248 252019 020 005 003 00
141400 2647N 09658W 3601 08379 0461 -212 -248 250019 019 003 003 00
141430 2645N 09659W 3601 08380 0462 -213 -248 249018 018 005 003 00
141500 2642N 09700W 3601 08379 0461 -214 -249 243018 018 002 003 00
141530 2640N 09701W 3601 08379 0460 -215 -249 241017 017 000 004 03
141600 2638N 09702W 3601 08378 0460 -215 -249 243017 017 002 003 00
141630 2636N 09703W 3601 08380 0461 -213 -249 245018 018 000 003 00
141700 2634N 09704W 3601 08379 0461 -215 -249 248017 018 000 003 00
141730 2631N 09705W 3601 08376 0460 -215 -247 250019 019 001 003 00
141800 2629N 09706W 3601 08379 0461 -213 -244 252020 021 004 002 00
141830 2627N 09707W 3601 08379 0460 -210 -244 253021 021 000 003 00
141900 2625N 09709W 3601 08380 0460 -210 -245 248019 019 003 002 00
141930 2623N 09710W 3601 08379 0460 -210 -244 245019 020 021 000 00
142000 2620N 09711W 3602 08378 0460 -210 -245 245021 022 999 999 03
142030 2618N 09712W 3601 08380 0461 -210 -244 247020 021 092 015 03
142100 2616N 09713W 3601 08381 0462 -210 -243 250020 021 090 012 03
142130 2614N 09714W 3601 08381 0462 -210 -243 257023 024 020 000 03
142200 2611N 09715W 3601 08381 0462 -210 -244 261025 025 023 000 00
142230 2609N 09716W 3603 08376 0462 -210 -245 261024 024 025 000 03
$$
;

[x-y-no]

URNT15 KNHC 311432
AF307 0113E JIMENA HDOB 15 20090831
142300 2607N 09717W 3601 08381 0463 -205 -246 260023 023 999 999 03
142330 2605N 09718W 3601 08383 0464 -205 -249 264023 023 999 999 03
142400 2603N 09719W 3601 08382 0464 -205 -248 264023 023 999 999 03
142430 2600N 09720W 3602 08382 0465 -205 -250 265023 023 999 999 03
142500 2558N 09721W 3601 08385 0465 -205 -251 265022 023 999 999 03
142530 2556N 09722W 3602 08383 0466 -205 -253 268021 022 999 999 03
142600 2554N 09724W 3601 08386 0467 -205 -252 268021 021 999 999 03
142630 2552N 09726W 3602 08385 0467 -205 -250 267020 021 999 999 03
142700 2550N 09727W 3601 08387 0467 -206 -250 267020 020 999 999 03
142730 2549N 09729W 3601 08386 0467 -206 -248 260020 020 999 999 03
142800 2547N 09731W 3601 08387 0467 -206 -246 258021 021 999 999 03
142830 2545N 09732W 3601 08384 0467 -210 -246 255022 024 999 999 03
142900 2543N 09734W 3601 08384 0466 -205 -245 258025 026 999 999 03
142930 2541N 09735W 3602 08382 0466 -206 -246 257024 025 999 999 03
143000 2539N 09737W 3601 08387 0465 -207 -246 259023 024 999 999 03
143030 2537N 09738W 3601 08384 0465 -205 -246 260023 023 999 999 03
143100 2535N 09740W 3601 08384 0465 -210 -248 264023 024 999 999 03
143130 2533N 09741W 3601 08383 0464 -206 -246 263023 024 999 999 03
143200 2531N 09742W 3601 08383 0464 -206 -248 264022 023 999 999 03
143230 2529N 09744W 3602 08381 0464 -208 -249 264021 022 999 999 03
$$
;

[srainhoutx]
