URNT15 KNHC 162310
AF302 0413A KARL HDOB 15 20100916
230030 2123N 09226W 8429 01555 0081 +176 +078 114028 029 028 001 00
230100 2121N 09227W 8430 01554 0081 +175 +083 114029 030 028 000 00
230130 2120N 09228W 8431 01553 0079 +175 +086 112028 028 029 001 00
230200 2119N 09229W 8429 01553 0077 +176 +090 113027 028 029 001 00
230230 2117N 09231W 8429 01553 0078 +175 +093 114026 026 029 001 03
230300 2116N 09232W 8427 01553 0076 +175 +096 113027 028 030 001 00
230330 2115N 09233W 8429 01551 0075 +176 +098 113028 028 029 000 00
230400 2114N 09235W 8428 01551 0074 +174 +099 110029 029 029 000 00
230430 2112N 09236W 8432 01548 0075 +170 +101 109028 029 029 000 00
230500 2111N 09237W 8430 01548 0074 +175 +102 113030 030 030 000 00
230530 2110N 09239W 8430 01547 0073 +175 +102 112031 032 030 000 03
230600 2109N 09240W 8430 01547 0071 +175 +102 112030 030 031 000 03
230630 2108N 09241W 8428 01548 0072 +175 +102 110030 030 031 000 00
230700 2106N 09243W 8429 01544 0071 +173 +101 110030 030 030 001 00
230730 2105N 09244W 8432 01543 0070 +174 +101 110031 032 031 000 03
230800 2104N 09245W 8428 01548 0069 +173 +101 110031 032 031 000 03
230830 2103N 09247W 8429 01544 0067 +175 +101 109032 032 032 000 03
230900 2101N 09248W 8428 01545 0068 +174 +101 112033 034 032 000 03
230930 2100N 09249W 8428 01544 0069 +169 +101 110033 034 033 001 03
231000 2059N 09251W 8428 01543 0063 +176 +102 113034 035 033 000 00
$$
;

[Dave]

[Dave]

URNT15 KNHC 162320
AF302 0413A KARL HDOB 16 20100916
231030 2058N 09252W 8429 01539 0062 +174 +101 114034 034 034 001 00
231100 2056N 09253W 8436 01533 0064 +174 +102 114033 034 034 002 00
231130 2055N 09254W 8432 01539 0064 +177 +102 115034 035 034 000 03
231200 2054N 09256W 8428 01543 0064 +175 +102 113034 035 034 000 03
231230 2053N 09257W 8429 01543 0064 +175 +102 112035 036 034 001 03
231300 2051N 09258W 8429 01543 0066 +175 +103 111035 036 034 000 03
231330 2050N 09300W 8433 01539 0067 +175 +103 109034 035 035 001 03
231400 2049N 09301W 8425 01547 0065 +176 +103 109034 035 035 000 03
231430 2047N 09302W 8429 01543 0066 +174 +104 111033 034 035 000 03
231500 2046N 09304W 8429 01539 0064 +175 +105 112035 035 034 000 03
231530 2045N 09305W 8429 01540 0062 +175 +105 111035 036 034 000 03
231600 2044N 09306W 8429 01539 0062 +175 +105 109037 037 035 000 03
231630 2042N 09307W 8429 01538 0061 +175 +106 107035 036 036 001 03
231700 2041N 09309W 8431 01536 0061 +171 +106 110035 036 038 001 03
231730 2040N 09310W 8429 01536 0058 +172 +106 112036 037 038 000 03
231800 2039N 09311W 8432 01531 0057 +170 +105 111036 036 038 000 03
231830 2037N 09313W 8430 01532 0056 +173 +104 108036 036 038 000 03
231900 2036N 09314W 8430 01532 0054 +173 +103 110037 038 039 000 03
231930 2035N 09315W 8428 01533 0055 +172 +103 113037 037 038 000 03
232000 2034N 09316W 8428 01531 0052 +175 +104 111036 037 039 000 00
$$
;

[Dave]

[Dave]

URNT15 KNHC 162330
AF302 0413A KARL HDOB 17 20100916
232030 2032N 09318W 8428 01530 0052 +170 +105 113038 038 040 000 03
232100 2031N 09319W 8433 01522 0053 +162 +105 114042 044 040 000 03
232130 2030N 09320W 8434 01519 0049 +166 +104 112041 042 039 001 00
232200 2028N 09322W 8429 01522 0046 +168 +103 112040 040 038 001 03
232230 2027N 09323W 8428 01522 0043 +172 +103 112041 041 038 000 03
232300 2026N 09324W 8432 01516 0039 +175 +103 113042 042 038 000 00
232330 2025N 09326W 8432 01514 0037 +172 +104 114040 041 039 000 00
232400 2023N 09327W 8428 01515 0037 +167 +105 114039 040 040 000 03
232430 2022N 09328W 8430 01511 0035 +166 +107 113042 044 041 000 03
232500 2021N 09329W 8427 01511 0033 +166 +107 110045 046 044 000 03
232530 2020N 09331W 8435 01502 0036 +158 +106 111045 046 044 002 00
232600 2018N 09332W 8430 01503 0031 +159 +104 111044 047 045 003 03
232630 2017N 09333W 8435 01498 0025 +167 +101 111046 048 045 001 03
232700 2016N 09335W 8425 01504 0024 +164 +099 111046 047 046 002 00
232730 2015N 09336W 8431 01493 0022 +157 +099 109048 049 047 006 00
232800 2013N 09337W 8421 01500 0023 +150 +098 113050 053 055 011 00
232830 2012N 09338W 8439 01478 0019 +149 +095 121050 051 053 011 00
232900 2011N 09340W 8420 01493 0005 +165 +092 119053 054 050 006 00
232930 2010N 09341W 8430 01480 9998 +169 +091 121052 054 049 002 00
233000 2008N 09342W 8430 01473 9990 +172 +092 121055 056 049 001 00
$$
;

[Dave]

[Dave]

URNT15 KNHC 162340
AF302 0413A KARL HDOB 18 20100916
233030 2007N 09343W 8425 01476 9983 +175 +095 124055 056 051 001 00
233100 2006N 09345W 8427 01464 9972 +177 +098 124055 056 052 002 00
233130 2005N 09346W 8430 01454 9964 +179 +101 120059 060 053 005 00
233200 2003N 09347W 8431 01446 9955 +179 +104 119061 062 053 005 00
233230 2002N 09348W 8442 01424 9944 +178 +107 118064 065 055 006 00
233300 2001N 09350W 8427 01426 9928 +181 +109 118068 068 056 003 00
233330 2000N 09351W 8426 01414 9912 +182 +110 115070 071 060 003 00
233400 1958N 09352W 8429 01394 9895 +181 +111 115073 074 061 003 00
233430 1957N 09353W 8435 01371 9868 +195 +113 119078 080 060 001 03
233500 1955N 09353W 8429 01354 9835 +209 +115 120082 083 062 000 03
233530 1954N 09354W 8426 01335 9812 +204 +118 119084 088 065 001 03
233600 1953N 09355W 8426 01307 9795 +179 +122 119069 075 067 006 00
233630 1951N 09356W 8437 01278 9766 +195 +123 129054 059 060 004 03
233700 1950N 09357W 8430 01269 9746 +202 +123 137041 045 035 000 03
233730 1949N 09358W 8430 01261 9737 +198 +125 130028 033 029 000 03
233800 1948N 09359W 8430 01256 9732 +196 +128 112018 020 026 000 03
233830 1946N 09400W 8433 01247 9725 +200 +131 102014 015 027 000 03
233900 1945N 09400W 8428 01250 9718 +208 +134 091009 012 026 000 03
233930 1943N 09400W 8433 01242 9712 +215 +136 278002 006 028 000 00
234000 1941N 09400W 8441 01237 9718 +210 +140 273016 022 028 001 03
$$
;

971.2 mb; *Correction 88 kts flt lvl; 67 kts sfmr (no flags)

[Dave]

[Dave]

URNT15 KNHC 162350
AF302 0413A KARL HDOB 19 20100916
234030 1940N 09401W 8430 01258 9728 +209 +143 284032 035 041 004 00
234100 1939N 09402W 8430 01269 9745 +202 +145 293044 048 052 008 00
234130 1938N 09403W 8428 01287 9771 +183 +146 297055 057 070 020 00
234200 1937N 09404W 8425 01309 9804 +164 +143 306071 077 071 026 00
234230 1936N 09406W 8426 01331 9831 +164 +136 304076 078 073 013 00
234300 1935N 09407W 8429 01352 9853 +165 +128 307080 082 068 008 00
234330 1934N 09408W 8423 01375 9875 +163 +121 311078 079 068 007 00
234400 1933N 09409W 8427 01387 9894 +163 +116 317077 078 065 009 00
234430 1932N 09410W 8424 01405 9910 +164 +113 318079 082 065 015 00
234500 1931N 09411W 8429 01411 9933 +145 +111 311074 076 067 028 00
234530 1930N 09412W 8427 01425 9945 +148 +107 313075 077 063 020 00
234600 1929N 09413W 8432 01430 9956 +151 +105 311074 080 063 018 00
234630 1928N 09415W 8428 01444 9969 +149 +103 317071 073 060 017 00
234700 1927N 09416W 8432 01450 9981 +145 +101 313066 069 060 023 00
234730 1925N 09417W 8432 01454 9987 +144 +100 308061 065 057 031 00
234800 1924N 09418W 8431 01464 9997 +144 +098 309064 066 054 019 00
234830 1923N 09419W 8431 01469 9998 +150 +097 311059 061 051 013 00
234900 1922N 09420W 8433 01472 0005 +149 +095 315058 061 051 012 00
234930 1921N 09422W 8426 01482 0006 +156 +094 315056 056 049 008 00
235000 1920N 09423W 8430 01483 0008 +163 +093 316055 056 047 006 00
$$
;

[Dave]

000
URNT12 KNHC 162355

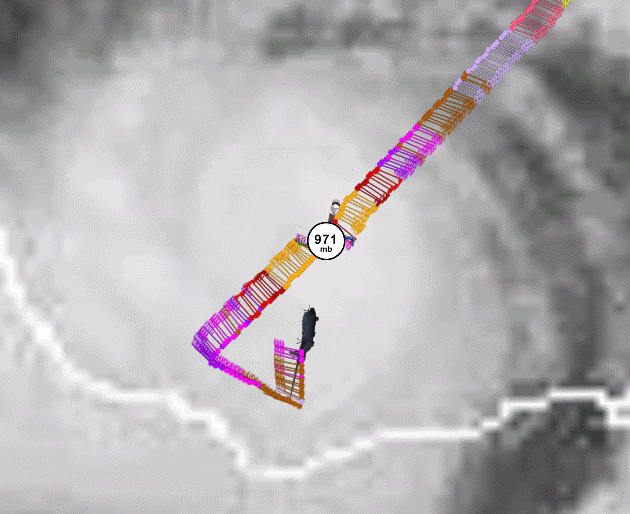

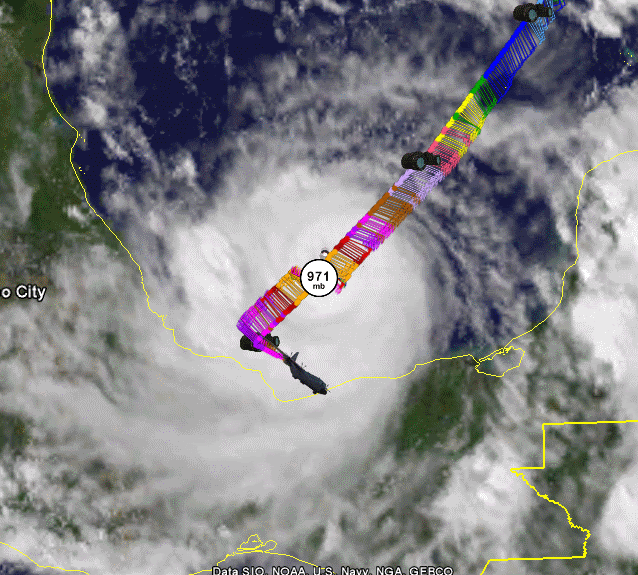

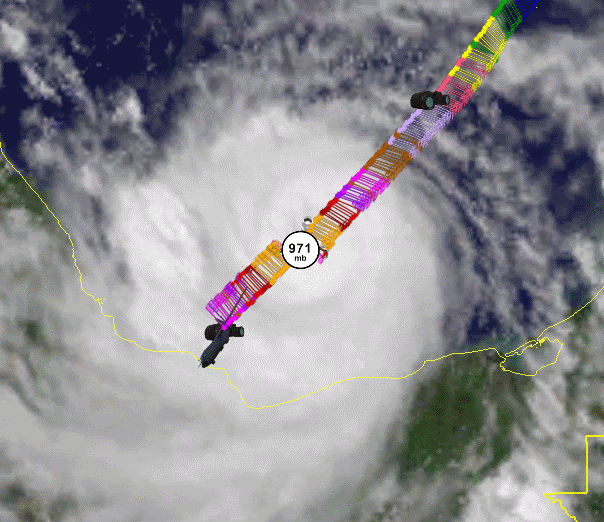

VORTEX DATA MESSAGE AL132010
A. 16/23:39:30Z
B. 19 deg 43 min N
094 deg 00 min W
C. 850 mb 1175 m
D. 66 kt
E. 028 deg 11 nm
F. 119 deg 88 kt
G. 028 deg 12 nm
H. 971 mb
I. 18 C / 1521 m
J. 22 C / 1524 m
K. 14 C / NA
L. OPEN NW
M. C10
N. 12345 / 8
O. 0.02 / 1 nm
P. AF302 0413A KARL OB 05
MAX FL WIND 88 KT NE QUAD 23:35:40Z
;

[Dave]

[Dave]

Product: Air Force Vortex Message (URNT12 KNHC)
Transmitted: 16th day of the month at 23:55Z
Aircraft: Air Force Aircraft (Last 3 digits of the tail number are 302)
Storm Number & Year: 13L in 2010
Storm Name: Karl (flight in the North Atlantic basin)
Mission Number: 4
Observation Number: 05
A. Time of Center Fix: 16th day of the month at 23:39:30Z
B. Center Fix Coordinates: 19°43'N 94°00'W (19.7167N 94.W)
B. Center Fix Location: 139 miles (224 km) to the NNW (330°) from Villahermosa, Tabasco, México.
C. Minimum Height at Standard Level: 1,175m (3,855ft) at 850mb
D. Estimated (by SFMR or visually) Maximum Surface Wind: 66kts (~ 76.0mph)
E. Location of the Estimated Maximum Surface Wind: 11 nautical miles (13 statute miles) to the NNE (28°) of center fix
F. Maximum Flight Level Wind Inbound: From 119° at 88kts (From the ESE at ~ 101.3mph)
G. Location of Maximum Flight Level Wind Inbound: 12 nautical miles (14 statute miles) to the NNE (28°) of center fix
H. Minimum Sea Level Pressure: 971mb (28.67 inHg)
I. Maximum Flight Level Temp & Pressure Altitude Outside Eye: 18°C (64°F) at a pressure alt. of 1,521m (4,990ft)
J. Maximum Flight Level Temp & Pressure Altitude Inside Eye: 22°C (72°F) at a pressure alt. of 1,524m (5,000ft)
K. Dewpoint Temp (collected at same location as temp inside eye): 14°C (57°F)
K. Sea Surface Temp (collected at same location as temp inside eye): Not Available
L. Eye Character: Open in the northwest
M. Eye Shape & Diameter: Circular with a diameter of 10 nautical miles (12 statute miles)
N. Fix Determined By: Penetration, Radar, Wind, Pressure and Temperature
N. Fix Level: 850mb
O. Navigation Fix Accuracy: 0.02 nautical miles
O. Meteorological Accuracy: 1 nautical mile
Remarks Section:
Maximum Flight Level Wind: 88kts (~ 101.3mph) in the northeast quadrant at 23:35:40Z

[Dave]

URNT15 KNHC 170000
AF302 0413A KARL HDOB 20 20100916
235030 1919N 09424W 8432 01484 0016 +154 +093 318052 054 045 007 00
235100 1918N 09425W 8426 01492 0016 +159 +094 317050 051 045 006 00
235130 1917N 09427W 8430 01490 0015 +164 +095 317051 051 046 006 00
235200 1916N 09428W 8433 01492 0023 +157 +096 315052 052 047 006 00
235230 1915N 09429W 8433 01495 0030 +154 +098 316049 053 047 007 00
235300 1913N 09430W 8420 01512 0031 +160 +099 320054 056 047 010 00
235330 1912N 09431W 8431 01505 0040 +152 +101 322052 053 048 014 00
235400 1911N 09433W 8435 01503 0049 +141 +101 319052 053 047 009 00
235430 1910N 09434W 8429 01515 0049 +149 +099 315048 050 045 005 00
235500 1909N 09435W 8429 01516 0054 +144 +097 316045 046 046 007 00
235530 1908N 09436W 8428 01521 0049 +159 +096 317040 042 046 008 00
235600 1907N 09438W 8431 01518 0053 +155 +096 322041 044 046 013 00
235630 1905N 09439W 8432 01521 0068 +136 +095 323039 040 046 016 00
235700 1904N 09440W 8430 01523 0066 +140 +094 323043 044 047 009 00
235730 1903N 09441W 8438 01516 0066 +143 +093 322040 043 046 010 00
235800 1902N 09443W 8428 01529 0054 +167 +092 320042 044 044 008 00
235830 1901N 09444W 8425 01531 0055 +165 +092 323040 042 041 004 00
235900 1900N 09445W 8432 01526 0056 +166 +092 322043 044 040 004 00
235930 1859N 09446W 8429 01529 0056 +168 +094 316046 047 040 002 00
000000 1857N 09448W 8430 01528 0054 +169 +096 317044 045 039 003 00
$$
;

[Dave]

[Dave]

URNT15 KNHC 170010
AF302 0413A KARL HDOB 21 20100917
000030 1856N 09449W 8429 01533 0058 +169 +099 321046 047 037 003 00
000100 1855N 09450W 8429 01535 0062 +170 +102 324048 048 038 003 00
000130 1854N 09451W 8431 01537 0064 +168 +104 321046 047 037 004 03
000200 1852N 09451W 8429 01538 0061 +172 +108 315045 045 /// /// 03
000230 1851N 09449W 8439 01528 0061 +170 +110 311045 045 041 008 03
000300 1851N 09447W 8428 01538 0060 +171 +112 311045 046 042 006 00
000330 1850N 09446W 8429 01537 0058 +176 +113 309045 045 043 004 00
000400 1849N 09444W 8432 01533 0056 +176 +113 307044 045 042 002 00
000430 1848N 09442W 8429 01535 0057 +173 +115 305044 044 042 002 00
000500 1847N 09440W 8427 01537 0057 +171 +116 306043 044 042 002 00
000530 1846N 09438W 8431 01531 0054 +175 +117 306041 041 041 002 00
000600 1845N 09436W 8428 01534 0054 +177 +118 305040 041 040 000 03
000630 1844N 09434W 8430 01531 0053 +175 +120 301042 043 041 000 03
000700 1844N 09432W 8430 01532 0054 +173 +122 300042 043 040 000 03
000730 1843N 09430W 8430 01531 0054 +171 +123 299042 043 040 000 03
000800 1842N 09428W 8431 01531 0056 +169 +125 296039 040 041 002 00
000830 1841N 09427W 8429 01532 0055 +169 +125 298036 037 043 001 00
000900 1840N 09425W 8427 01534 0055 +170 +125 301037 038 043 002 00
000930 1839N 09423W 8433 01531 0057 +170 +125 300036 036 042 001 03
001000 1838N 09421W 8433 01528 0058 +166 +125 296035 035 039 000 00
$$
;

[Dave]

[CrazyC83]

UZNT13 KNHC 162353
XXAA 67008 99199 70939 04693 99977 25600 09587 00703 ///// /////
92486 23802 11080 85227 19840 11571 88999 77999
31313 09608 82335
61616 AF302 0413A KARL OB 06
62626 MXWNDBND SPL 1989N09395W 2337 AEV 20801 DLM WND 11079 97789
4 WL150 10084 049 REL 1988N09392W 233558 SPG 1989N09394W 233712 =
XXBB 67008 99199 70939 04693 00977 25600 11857 22229 22850 19840
33843 17450
21212 00977 09587 11944 11078 22932 11082 33905 11075 44894 11076
55843 11571
31313 09608 82335
61616 AF302 0413A KARL OB 06
62626 MXWNDBND SPL 1989N09395W 2337 AEV 20801 DLM WND 11079 97789
4 WL150 10084 049 REL 1988N09392W 233558 SPG 1989N09394W 233712 =
;

87 kt surface winds in the dropsonde...is it accurate though?

[Dave]

URNT15 KNHC 170019
AF302 0413A KARL HDOB 22 20100917
001030 1837N 09419W 8430 01532 0059 +165 +125 294036 038 040 000 00
001100 1837N 09417W 8426 01535 0056 +168 +125 290038 039 040 000 03
001130 1836N 09416W 8429 01533 0056 +170 +125 287038 038 038 000 03
001200 1835N 09414W 8431 01531 0057 +170 +125 289036 037 034 000 03
001230 1834N 09412W 8427 01534 0058 +166 +125 288036 038 /// /// 03
001300 1836N 09411W 8429 01534 0056 +170 +126 295033 034 033 002 03
001330 1837N 09411W 8439 01521 0054 +172 +126 294038 039 038 004 00
001400 1839N 09411W 8425 01535 0062 +155 +126 292038 038 040 003 00
001430 1840N 09411W 8429 01529 0055 +165 +124 291036 037 039 004 00
001500 1842N 09411W 8428 01531 0050 +173 +121 288037 038 039 001 00
001530 1843N 09411W 8429 01527 0048 +172 +120 286039 039 040 001 00
001600 1845N 09411W 8427 01527 0047 +169 +121 288039 040 041 002 00
001630 1846N 09411W 8429 01522 0045 +169 +121 285040 041 044 002 00
001700 1848N 09411W 8429 01521 0042 +172 +122 282038 038 046 002 00
001730 1849N 09411W 8429 01520 0034 +181 +121 282035 035 045 005 00
001800 1851N 09411W 8429 01517 0033 +179 +122 282038 040 044 007 00
001830 1853N 09411W 8429 01515 0033 +178 +122 284041 042 044 006 00
001900 1854N 09411W 8430 01514 0028 +181 +121 286041 042 045 005 00
001930 1856N 09411W 8429 01514 0027 +180 +121 284042 043 044 001 00
002000 1857N 09411W 8430 01510 0022 +184 +122 282042 043 043 000 03
$$
;

[Dave]
